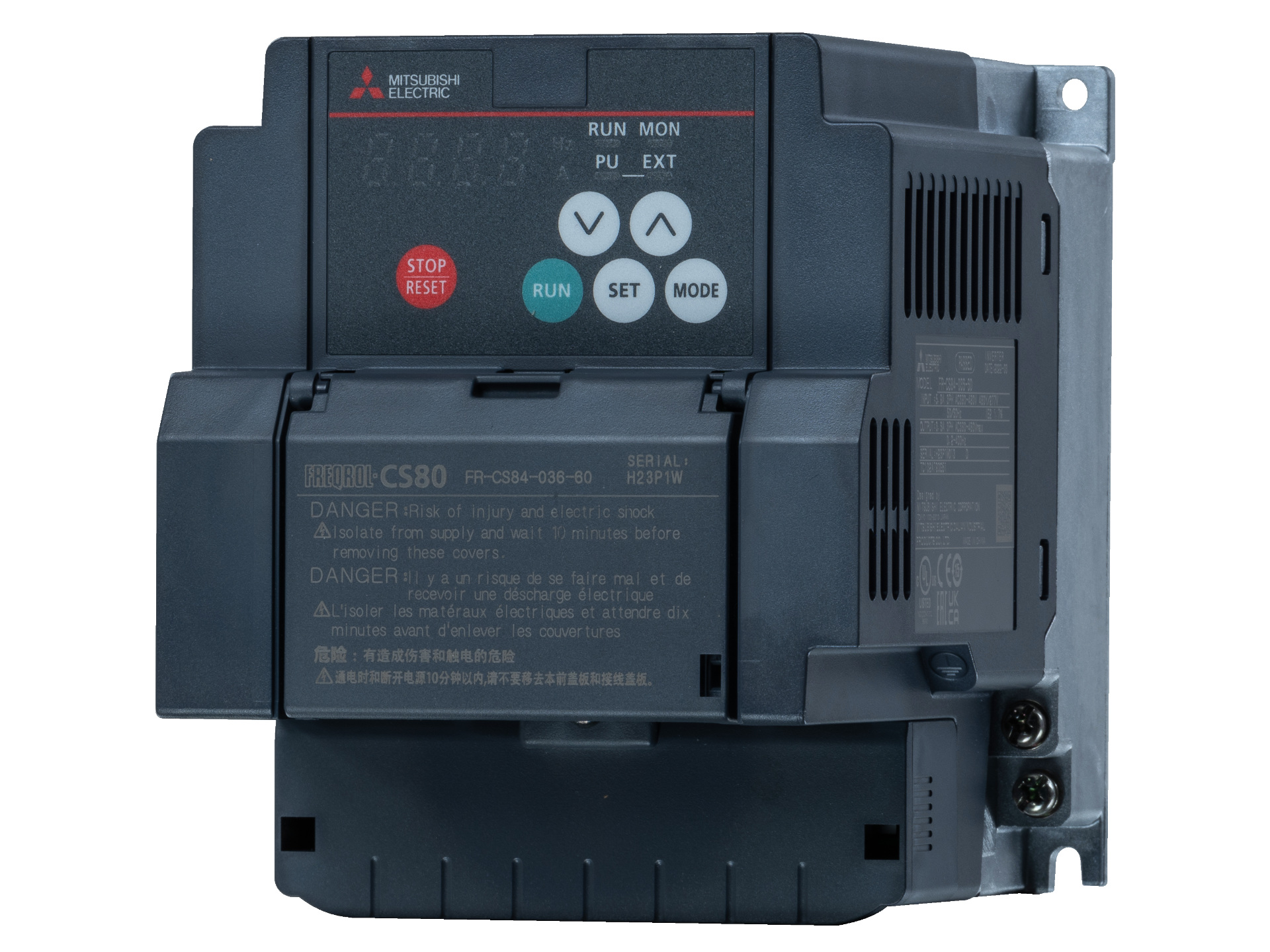

FR-CS80
The micro inverter
- Power range: 0.4–2.2 kW 1 ph, 0.4–15 kW 3 ph
- Input: 200 V 1 ph, 400 V 3 ph (50/60 Hz)
- Output frequency: 0.2–400 Hz
- Protection: IP20
- Control: V/f control, optimum excitation control or general-purpose magnetic flux vector control
- Interfaces: RS485, Modbus®/RTU, Mitsubishi Electric frequency inverter protocol
| File | Size |
|---|
By providing general-purpose magnetic-flux control in the world’s smallest compact body, the FR-CS80 offers cost-efficient solutions. This makes the FR-CS80 suitable for almost all industrial applications.
The cost-effective FR-CS80 frequency inverters cover a power range from 0.4 to 15 kW with a line voltage of 1-phase 200 V or 3-phase 400 V.
With flux vector control in Mitsubishi Electric’s smallest, most compact housing, the FR-CS80 offers a simple and cost-effective solution for your application. It is suitable for virtually all industrial applications.
What does the new FR-CS80 frequency inverter offer?
- Available as a single-phase 230-volt version from 0.4 to 2.2 kW and a three-phase 400-volt version from 0.4 to 15 kW.
- With its general-purpose magnetic flux vector control, the cost-effective, compact FR-CS80 inverter is the perfect solution for your drive applications.
- Cage-type terminals enable quick and easy wiring. Double-coated circuit boards protect the inverter from harsh and corrosive environments.
- Commissioning is quick and easy thanks to the quick start guide. This can be accessed via download (e.g. below) or via QR code.
General-purpose magnetic flux vector control
Due to the general-purpose magnetic flux vector control the inverter is providing high level torque even at low speed, without the need of encoder.
Fast-response current limit
Operation continues and the overcurrent alarm is not activated even if there is a sudden change in load.
DC Bus connection for energy saving
The DC Bus connectivity makes it possible to save energy within the system, and even makes it possible to connect a brake chopper or a regenerating unit.
Increased excitation deceleration
The deceleration time can be reduced without using a brake resistor. The tact time can be reduced for a transfer line or the similar.
Protected in hazardous environments
The circuit board coating conforms to IEC 60721-3-3 3C2/3S2 for improved environmental resistance.
Standard is not enough?
Does your specific application place very special demands on a frequency inverter that the standard model cannot fulfill?
Then ask us! We will be happy to help you find the right model!
Based on our many years of experience, we analyze our customers’ applications and advise them individually on the selection of suitable devices in terms of performance and budget. We keep proven frequency inverters from different model series in our warehouse, regardless of the power range.
