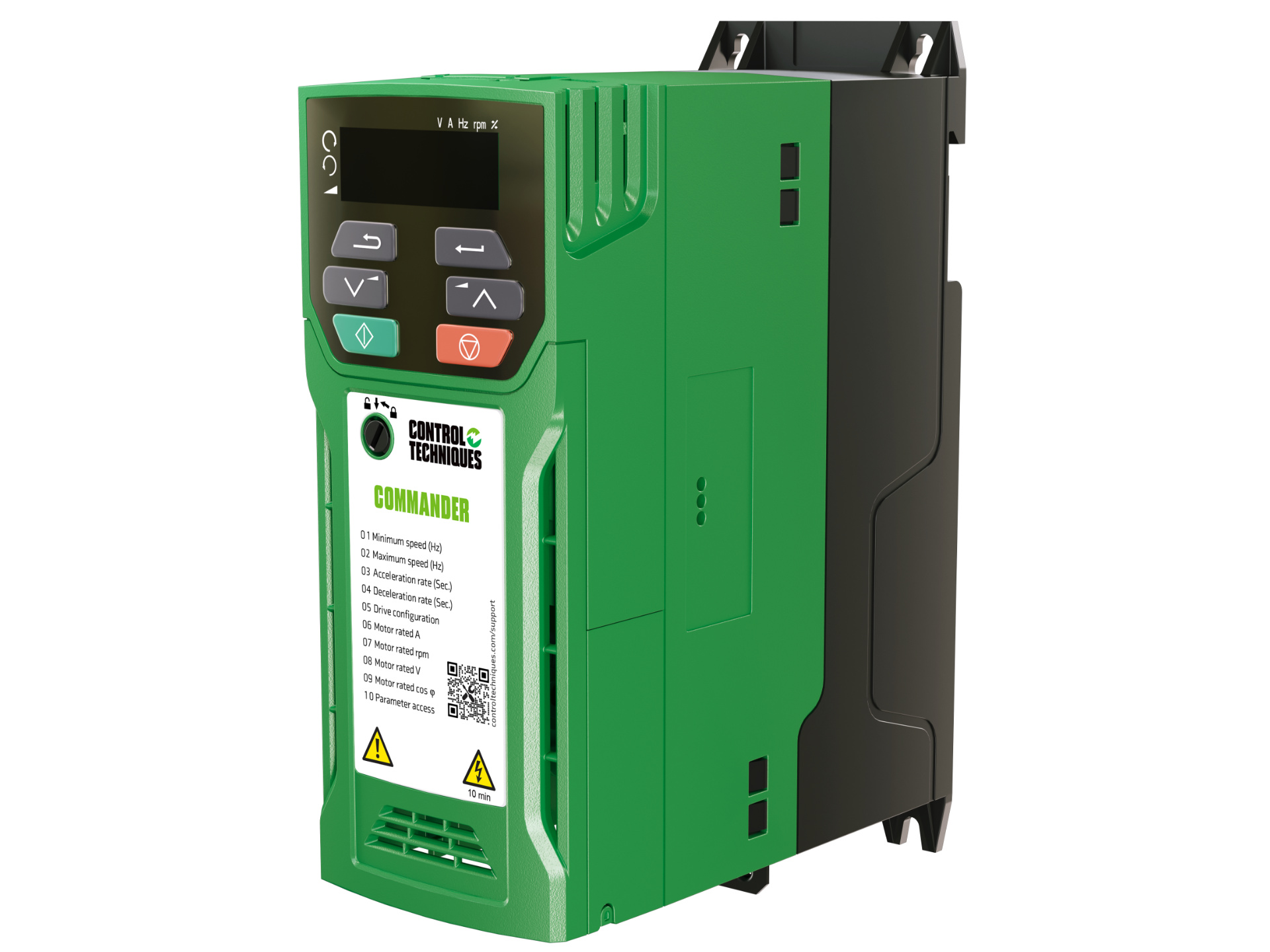

Commander C300
Inverters for machines such as hoists, conveyors, packaging technology, textile machines, material processing, pumps, fans, …
- Power range in kW (45 to 66 Hz mains): 0.25 kW to 132 kW
- Voltage 100 V models: 100 to 120 VAC ± 10%
- Voltage 200 V models: 200 to 240 VAC ± 10%
- Voltage 400 V models: 380 to 480 VAC ± 10%
- IP rating: IP20, NEMA 1 kits available
- You can commission your inverter with only 4 parameters
- Plugin options for advanced control
- 2 STO ports (Safe Torque Off)
- Equipped with the latest energy saving features
- Up to 180 % overload for high torque applications
- Onboard-SPS
- Uncomplicated installation and commissioning
- Easy motor coupling and power control
- Easy installation, setup and configuration
These inverters are suitable for any application, no matter how challenging. And thanks to its groundbreaking design, the new range is also super quick and easy to set up.
System integration modules
Can only be used from size 2
| SI-Profibus | PROFIBUS interface module |
| SI-CANopen | CANopen interface module |
| SI-DeviceNet | DeviceNet interface module |
| SI-EtherCAT | EtherCAT interface module |
| SI-Ethernet | External Ethernet module that supports EtherNet/IP and Modbus TCP/IP |
| SI-I/O | Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analogue inputs (default)/Digital inputs, 1 x Analogue output (default)/Digital input, 2 x Relays |
| SI-Profinet | PROFINET interface module |
Standard is not enough?
Does your specific application place very special demands on a frequency inverter that the standard model cannot fulfill?
Then ask us! We will be happy to help you find the right model!
Based on our many years of experience, we analyze our customers’ applications and advise them individually on the selection of suitable devices in terms of performance and budget. We keep proven frequency inverters from different model series in our warehouse, regardless of the power range.
When it comes to design, we rely on our core brands, for which we are an official trading partner.
