Special Filters (Customized)

Development of customized filtering solutions

To achieve an application-optimized solution in terms of radio interference suppression and immunity, many criteria must be considered. For this reason, in addition to our standard solutions, which meet most requirements, we also offer special filters.

These were developed based on the applicable standards with regard to electrical and mechanical effects on the handling application. We can measure the compatibility of your device or system on request.

EPA is continually developing new customized filter solutions, both mechanically and electrically optimized and are thus precisely tailored to the application of our customers.

You will find a large part of the overall program of suppression components of EPA on our website. If an EMC problem mechanically or electrically cannot be solved with a standard filter, so a large number of already tested special filters is available to our customers.

Thus we can offer appropriate solutions also for applications where less mounting space is available or the amount of leakage currents to earth play a significant role (e. g. the use of RCCBs). Mains filters for 690V- and IT-networks are available from stock. EPA will advise you in selecting the filter actions for your application!

If you do not own measurement capabilities, you can have the necessary measurements done reliable in our laboratory accomplished by our qualified personnel without long waits.

We will be happy to help you find the best and most cost-effective solution for your application!

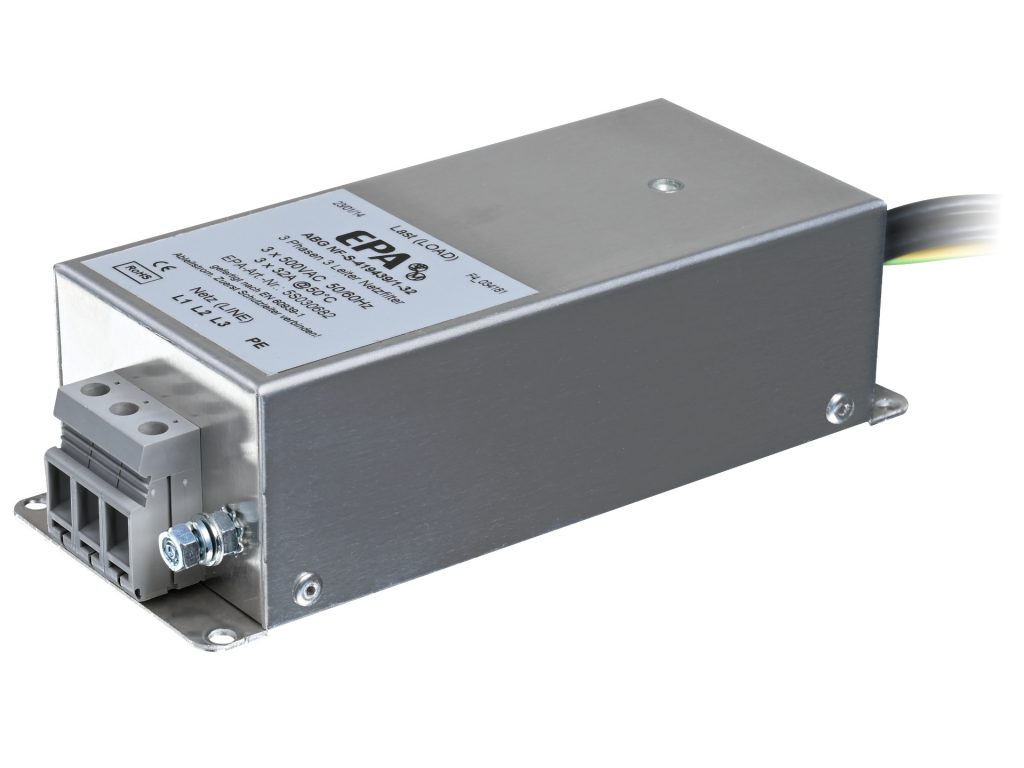

Produktbild NF-S

NF-S

Special filters

  • Current ratings from 1 a up to 2500 A
  • Small leakage or time delayed leakage current
  • Leakage current in µA-range (for medical applications)
  • Mechanical special solutions
  • Ready-made flexible leads
  • Filter for special voltages
  • Special connectors
  • Space saving case styles
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-S_data-sheet.pdf690.26 K

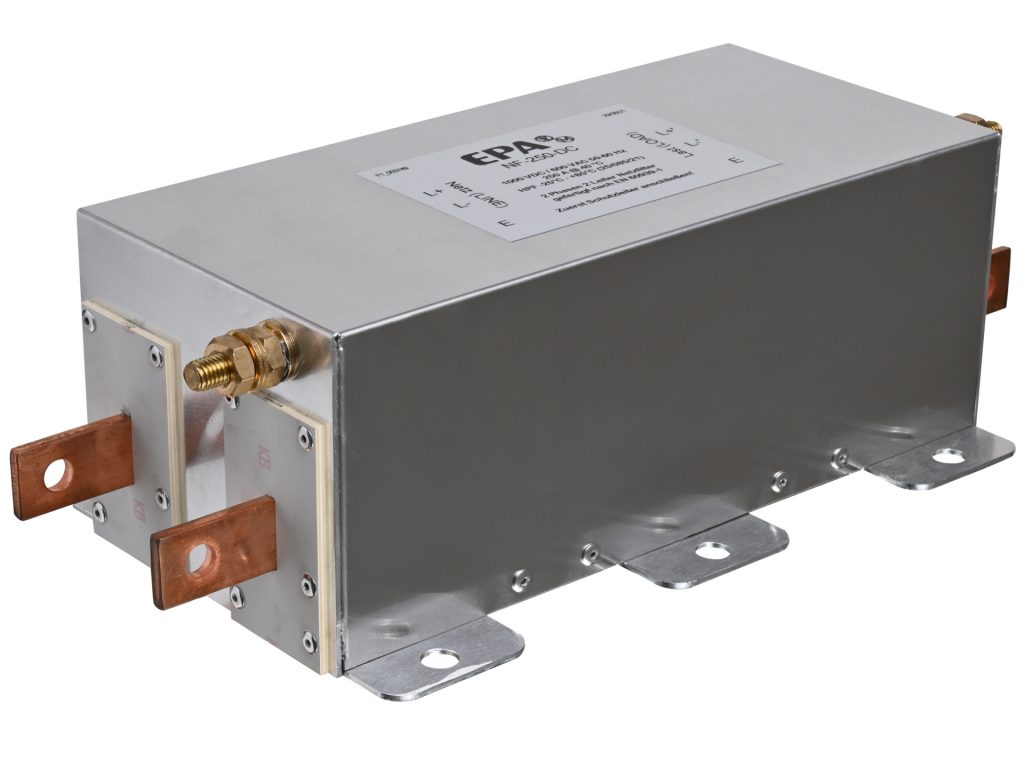

Produktbild NF-DC

NF-DC

Direct current filters

  • Nominal currents from 25 A up to 1000 A
  • Designed for industrial power installations in DC current
  • Principal applications: train, solar and wind energy as well as industrial DC applications
  • Mechanical compact structure with low weight and good thermal dissipation
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-DC_data-sheet.pdf2.07 M

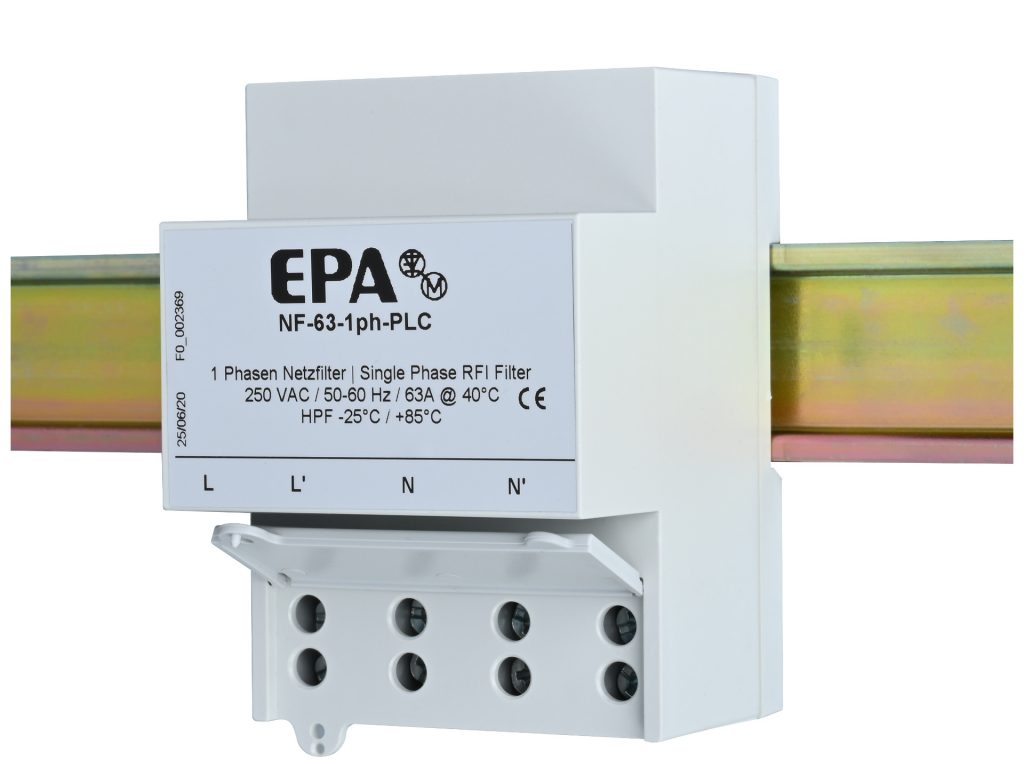

Produktbild NF-1ph-PLC

NF-1ph-PLC

Input filters for Power Line Communication (PLC)

  • Applications: smart meter, home automation, security systems
  • Rated current 63 A
  • Reduces interference in the CENELEC EN50065 frequency band (35 kHz up to 95 kHz)
  • Attenuation >55 dB
  • Rated voltage 250 VAC (110 – 250)
  • Rated operation frequency 50/60 Hz
  • Nominal cross section 6 – 16 mm²
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-1ph-PLC_data-sheet.pdf2.35 M

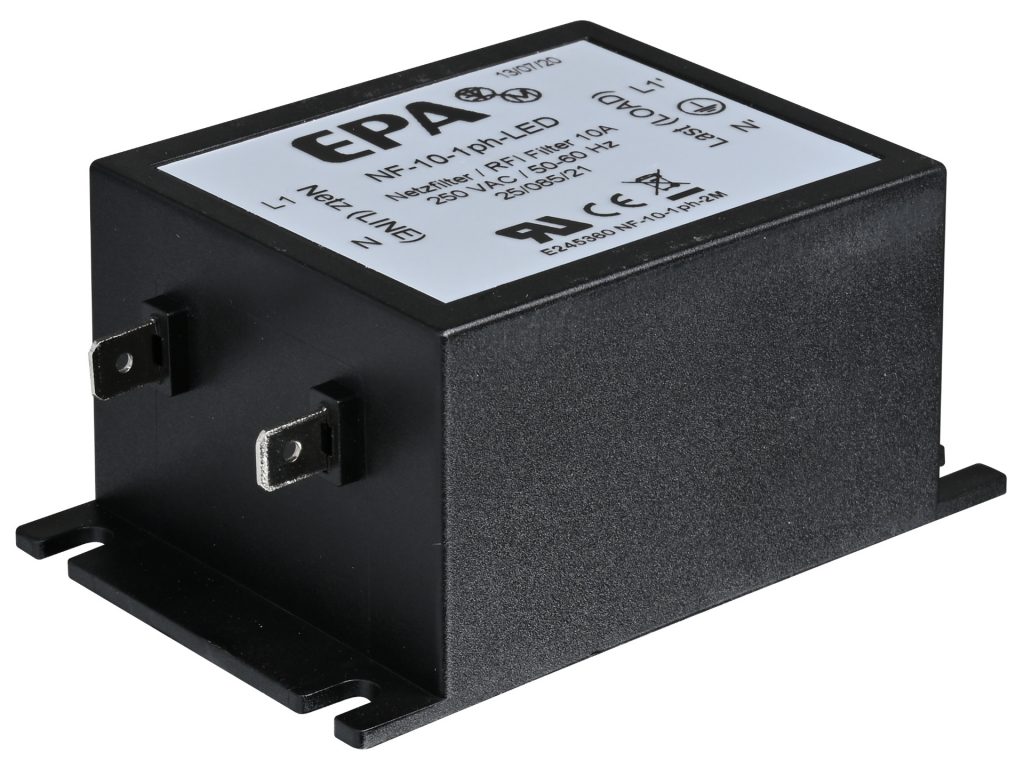

Produktbild NF-1ph-LED

NF-1ph-LED

  • Line filter for lighting purposes
  • Current ratings from 1 A up to 10 A
  • Attenuation curve optimized to lighting applications
  • Additional differential mode stage
  • Compact plastic case style
  • Fast-on connectors for fast, secure connection
  • UL approval
File Size
Data_Sheets » EMC » Single_Phase_RFI_Filters
EPA_RFI-filters_NF-1ph-LED_data-sheet.pdf2.90 M

Produktbild NF-Click-on

NF-Click-on

Mains input filters for rail systems

  • Current ratings from 50 A up to 80 A
  • Feed-in filter
  • Fast installation
  • For rail-systems up to 60 mm
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-Click-on_data-sheet.pdf3.01 M

Produktbild NF-SchuKo

NF-SchuKo

RFI filter with SchuKo type male / female connector

  • Current rating 16 A, 50/60 Hz, 115/230 V
  • Extreme low leakage 1,5 µA
  • Plus version with higher attenuations
  • Dimensions: 100 x 105 x 57 mm
  • 2-stage filter design
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-16-1ph-SchuKoPlus_data-sheet.pdf1.84 M
EPA_Special-filters_NF-16-1ph-SchuKo_data-sheet.pdf240.41 K
CAD » EMV » NF » 1ph
NF-1ph-SchuKo.zip641.11 K
NF-1ph-SchuKoPlus.zip535.74 K

Produktbild NF-Switch

NF-Switch

Input filters for main switches

  • Rated currents from 50 A up to 64 A and 250 A up to 800 A
  • Feed-in filter
  • Fast Installation
  • Mains RFI filter for cabinet
  • Matching main switch
File Size
Data_Sheets » EMC » Special_Filters
EPA_Special-filters_NF-Switch_data-sheet.pdf3.06 M
