RFI Filters Three-Phase

  • Voltage range: 400 –  690 V AC,  50/60 Hz
  • Rated current: 4 – 2500 A
  • Three-phase without Neutral

400 – 520 V AC


NF-DIN4

Compact filter for DIN rail mounting

  • Current ratings 5 – 32 A
  • Compact size
  • Easy DIN rail mounting
  • Also for residential building installations

Jump to downloads


NF-BFG

Compact filter for DIN rail mounting

  • Current ratings 10 – 50 A
  • High differential and common mode attenuation
  • Compact size
  • Easy DIN rail mounting (-CD version)
  • Low leakage current
  • Also for residential building installations

Jump to downloads


NF-K, NF-K-H

Universal Compact Filters for Electrical Drives

  • Current ratings 7 – 180A
  • Rated voltage 480 V (NF-K) or 520 V (NF-K-H)
  • Small dimensions (book style)
  • High attenuation
  • Fingerproof terminals
  • UL approval

Jump to downloads


NF-K-FTF/E

Compact Filter with Flexible Leads

  • Current ratings 7 – 55A
  • Small dimensions (book style)
  • High attenuation
  • Output with flexes
  • Input with fingerproof terminals

Jump to downloads


NF-KC

High Performance RFI Filter

  • Current ratings 7 – 180A
  • Small dimensions (book style)
  • Very high attenuation
  • Fingerproof terminals
  • Applications with high emissions
  • UL approval

Jump to downloads


NF-KC-LL

Low Leakage Current RFI Filter

  • Current ratings 7 – 180A
  • Small dimensions (book style)
  • Very low leakage current
  • High attenuation
  • Fingerproof terminals
  • UL approval

Jump to downloads


NF-KC-DAR

Combined EMC and leakage current reduction filters

  • Current ratings 10 – 180 A
  • For suppression of unwanted leakage currents ≥ 2kHz
  • Suitable for inverters and servo regulators with long lines
  • Small dimensions (book style)
  • Fingerproof terminals
  • Low leakage current

Jump to downloads


NF, NF-H

Universal Mains Filter with very high attenuation

  • Current ratings 8 – 180A
  • Flat style housing
  • Very high attenuation
  • Fingerproof terminals
  • For applications with high emissions
  • UL approval (16 – 50A)

Jump to downloads

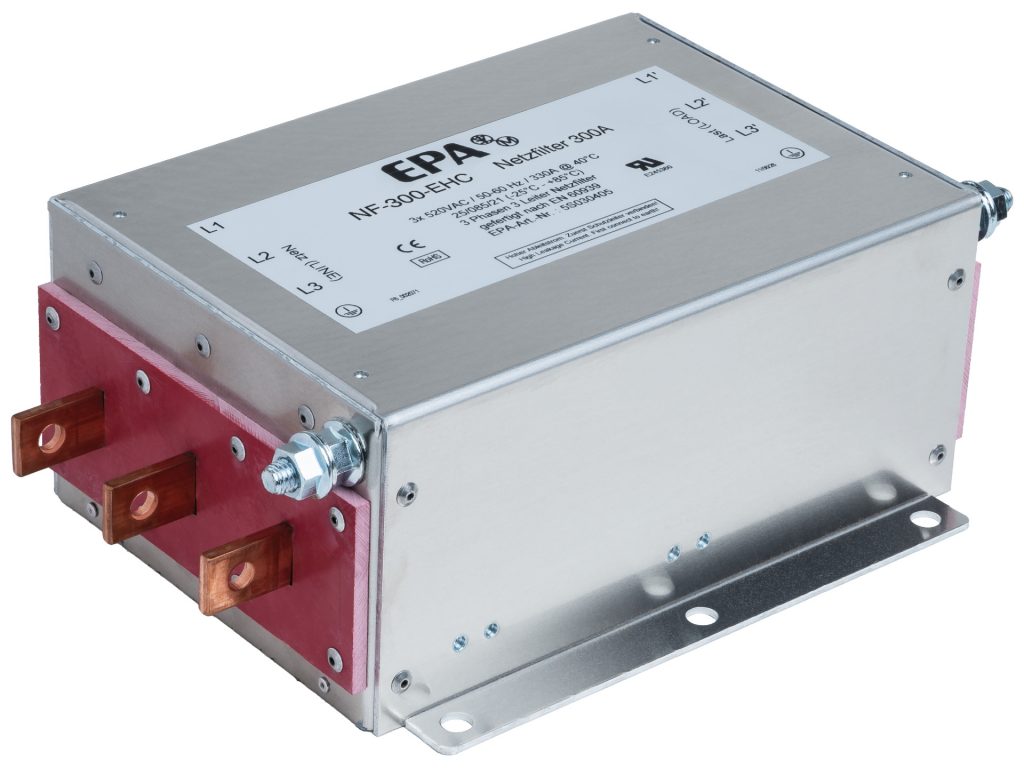

NF, NF-H

High Current EMC Filters

  • Current ratings 250 – 2500A
  • Very high attenuation
  • Low leakage current
  • Connection via copper busbars
  • UL approval (up to 1000A)

Jump to downloads


NF-DAR

Leakage current reduction filter

  • Current ratings 10 – 180 A
  • For suppression of unwanted leakage currents ≥ 2kHz
  • Suitable for inverters and servo regulators with long lines
  • Small dimensions (book style)
  • Fingerproof terminals
  • Low leakage current

Jump to downloads

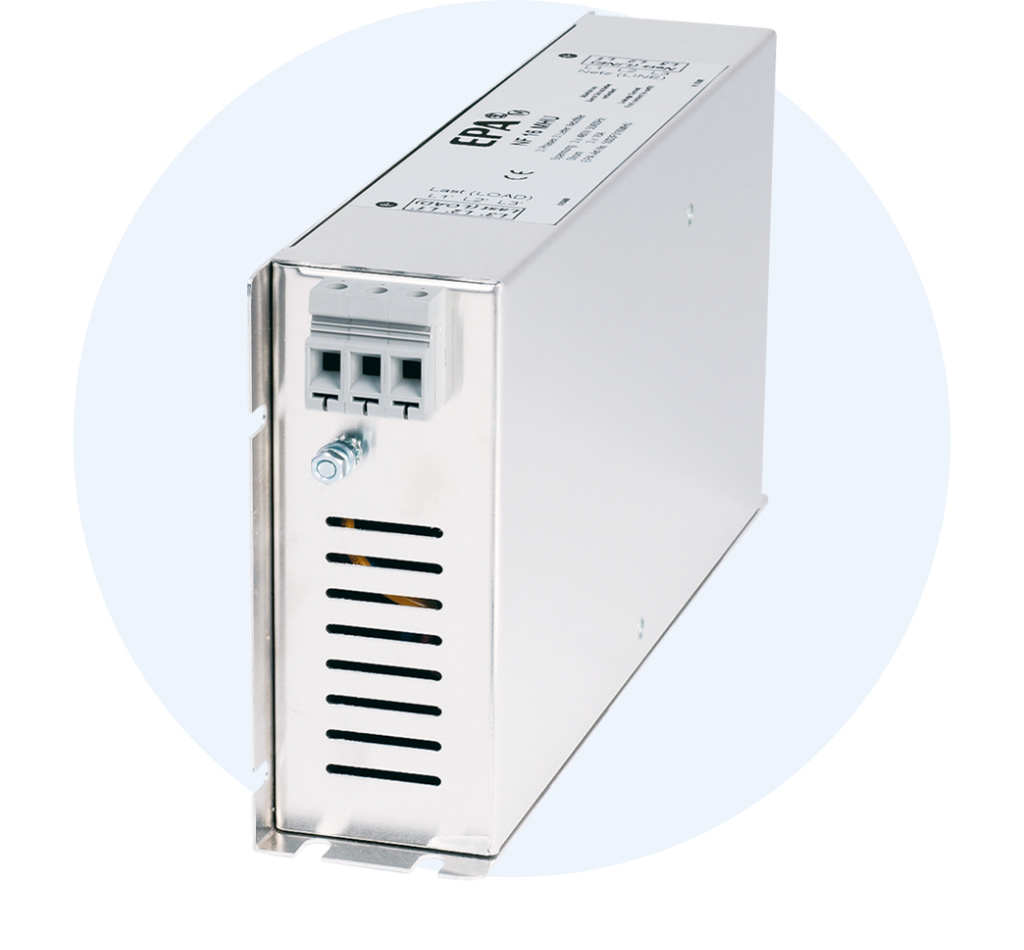

NF-MHU

High Performance Filters for Electrical Drives

  • Current ratings 6 – 180A
  • Mounting in book or flat style
  • Very high attenuation
  • Fingerproof terminals
  • For applications with high emissions
  • UL approval

Jump to downloads


NF-R, NF-R-CBL

Multi-stage Filters for Industrial Application

  • Current ratings 7 – 250A
  • Mounting in book or flat style
  • Very high attenuation
  • Fingerproof terminals
  • For applications with high emissions

Jump to downloads


NF-FSG

Compact Filters with flexible leads

  • Current ratings 4 – 24A
  • Low leakage current
  • Very high attenuation
  • Small dimensions
  • Output with flexes

Jump to downloads


NF-T

Multi-stage Compact Filters for Regeneration use

  • Current ratings 35 – 230A
  • For regeneration power use
  • Very high attenuation
  • Fingerproof terminals
  • For applications with high emissions
  • UL approval

Jump to downloads


NF-FTK

Mains Interference Filters

  • Current ratings 12 – 230A
  • Very high attenuation
  • Fingerproof terminals
  • Compact case style

Jump to downloads


NF-FTX

Tooling Machine Filters

  • Current ratings 10 – 600A
  • High attenuation
  • Compact case style
  • Main input filters
  • For tooling machines EN 50370-1

Jump to downloads

690V AC / IT-Netze


NF-K-IT

Compact Filters for 400V IT-Network and 690V TN-Network

  • Current ratings 7 – 180A
  • High dielectric withstanding voltage
  • Very low leakage current, very small Y capacitors
  • High symmetrical attenuation
  • Small dimensions (book style)
  • Fingerproof terminals
  • UL approval (up to 600V)

Jump to downloads


NF-R-HV

Multi-stage Filters for 400V IT-Network and 690V TN-Network

  • Current ratings 7 – 250A
  • High dielectric withstanding voltage
  • Very low leakage current, very small Y capacitors
  • Very high symmetrical attenuation
  • Mounting in book or flat style
  • Fingerproof terminals

Jump to downloads


NF-HV

High Current Filters for 400V IT-Network and 690V TN-Network

  • Current ratings 250 – 2500A
  • High dielectric withstanding voltage
  • Very low leakage current, very small Y capacitors
  • Very high symmetrical attenuation
  • Connection via copper busbars

Jump to downloads

Downloads

DateiGröße
Data_Sheets » EMC » Three_Phase_RFI_Filters
EPA_EMC_Leakage-current-reduction-filters_NF-KC-DAR-3_data-sheet.pdf614.27 K
EPA_Leakage-current-reduction-filters_NF-DAR-3_data-sheet.pdf557.93 K
EPA_RFI-filters_NF-BFG-CD_NF-BFG-CD-LL_data-sheet.pdf369.82 K
EPA_RFI-filters_NF-BFG_NF-BFG-LL_data-sheet.pdf400.58 K
EPA_RFI-filters_NF-DIN4_data-sheet.pdf327.92 K
EPA_RFI-filters_NF-FSG_data-sheet.pdf753.97 K
EPA_RFI-filters_NF-FTK_data-sheet.pdf915.98 K
EPA_RFI-filters_NF-FTX_data-sheet.pdf908.45 K
EPA_RFI-filters_NF-HV_data-sheet.pdf939.49 K
EPA_RFI-filters_NF-K-FTF_E_data-sheet.pdf733.01 K
EPA_RFI-filters_NF-K-IT_data-sheet.pdf887.19 K
EPA_RFI-filters_NF-KC-LKY_data-sheet.pdf850.98 K
EPA_RFI-filters_NF-KC-LL_data-sheet.pdf963.57 K
EPA_RFI-filters_NF-KC_data-sheet.pdf1.06 M
EPA_RFI-filters_NF-K_data-sheet.pdf1.02 M
EPA_RFI-filters_NF-MHU_data-sheet.pdf0.98 M
EPA_RFI-filters_NF-R-HV_data-sheet.pdf0.99 M
EPA_RFI-filters_NF-R_NF-R-CBL_data-sheet.pdf1.13 M
EPA_RFI-filters_NF-STIE_data-sheet.pdf574.08 K
EPA_RFI-filters_NF-T_data-sheet.pdf776.02 K
EPA_RFI-filters_NF_250-2500_data-sheet.pdf815.93 K
EPA_RFI-filters_NF_8-180_data-sheet.pdf902.87 K
